Aggregate Data using a Database

Methods for recording transactional data into a database.  Then based on fixed intervals, the data can be queried using aggregate database functions.

What Does This Article Cover:

The article will show how data can be inserted into a database.   Once the data is insert, then aggregate functions can be used to query the data on fixed intervals and outputted to a data source (e.g. MQTT).

Click here for the configuration used in this article.

Example Preparation

  1. Enable Intelligence Hub MQTT broker

    • In the left-hand navigation panel, navigate to Manage, and click Settings.
    • Under the MQTT Broker section enable the broker, if ports 1885 and 1886 are in use on the server hosting your Intelligence Hub, update to ports of your choosing, otherwise accept the defaults and click the Save button.

  2. Import the required content

    • In the left-hand navigation panel, navigate to Manage, and click Project
    • Within the Import screen, ensure Full Project is off (otherwise your existing project will be overwritten).
    • Copy the JSON provided in the code window above.
    • Change the Import Type to JSON and paste the provided JSON into the Project box and click the Import button.
  3. Update the imported Connections as required

    • Navigate to Configure and click Connections, click "MQTT_KB" and Update the MQTT settings as required based on the prior preparation step #1.

    • Navigate to Configure and click Connections, click "SQLite_KB" and update the path in the Database property.  By default, the SQLite database will be stored in the default location of appData.


    • Click the Save button.

  4. Setup the UNS Client

    • In the left-hand navigation panel, navigate to Tools and right click UNS Client and select Open Link in New Tab.

    • Enter login information.

    • For Connection select "MQTT_KB".

    • For Subscribed Topics enter "ProductionTransactionExample/#".

    • Click Add.

    • Click the "x" to remove topic "#".

    • Click the Connect button.

    • Confirm the UNS Client says "Connected to MQTT_KB".

    • Return to the previous web browser tab.

ProductionTransactionExample_Insert pipeline:

This pipeline shows how the transaction data is inserted into the database.   A trigger would need to be added to this pipeline to start it.   For event type data, an Event stage should be used.  After the data is received, some calculations are done to get the previous production date and current shift.  Then, the data is modeled into the format required for the destination table.  Finally, the data is inserted into the database.

Here is a test message for this pipeline:
{
     "ProductionID": 1,
     "OrderNumber": "1",
     "MaterialNumber": "A",
     "SerialNumber": "B",
     "Station": "Station1",
     "State": "Running",
     "Quantity": 3,
}

Here is a screenshot of the pipeline:



ProductionTransactionExample_UpdateMQTT:

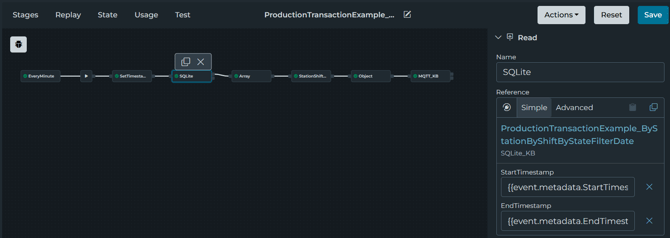

Here is where the data is aggregated and sent to MQTT.   The CronTrigger runs every minute and then reads from an input that uses a SQL statement that aggregates the transaction data.


Here is the input being used.   The query is aggregating the ProducedQuantity and DurationMinutes by Station, Shift and State. There also is a where clause that enable the StartTimesamp and EndTimestamp to be specified to filter the query by datetime.

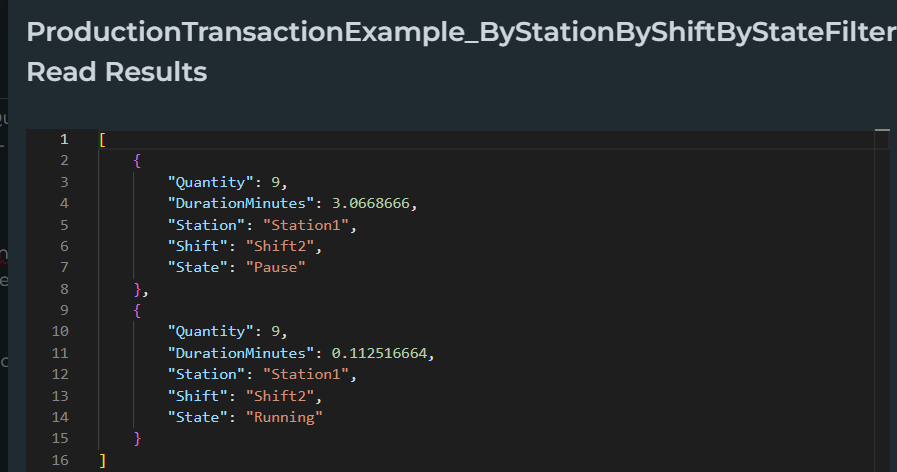

The query will produce multiple results.   The average is broken down by station and by shift.

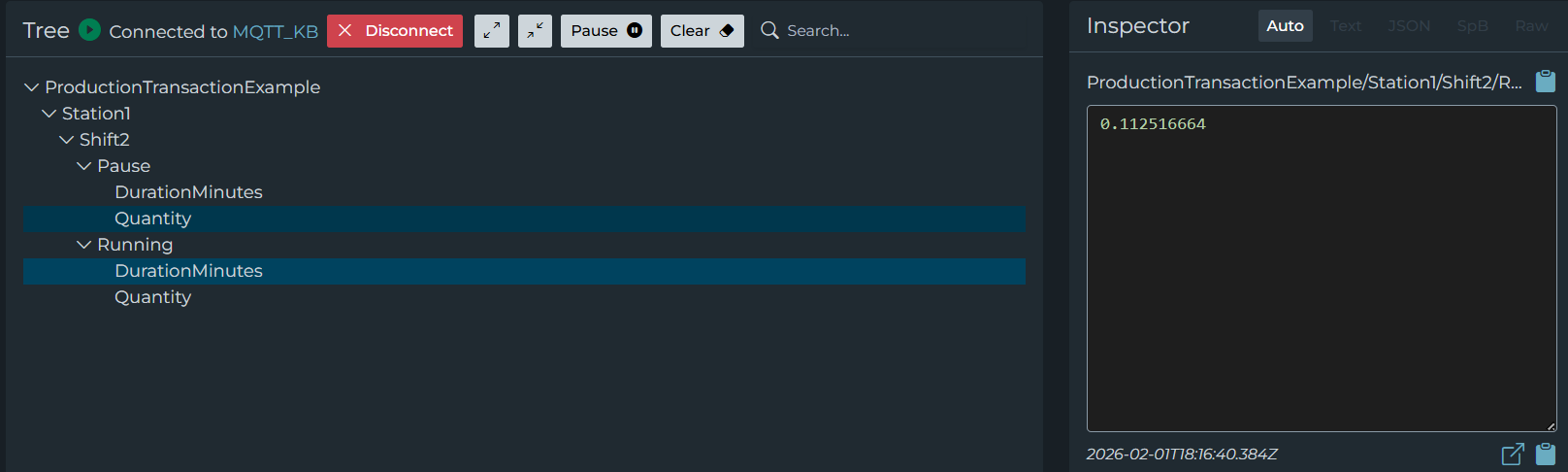

Then pipeline then breaks up the array of data, filters it and the breaks up the object to get the average value.  Once done, the result is written to MQTT.
